Laboratory Profilometer-Roughness Tester

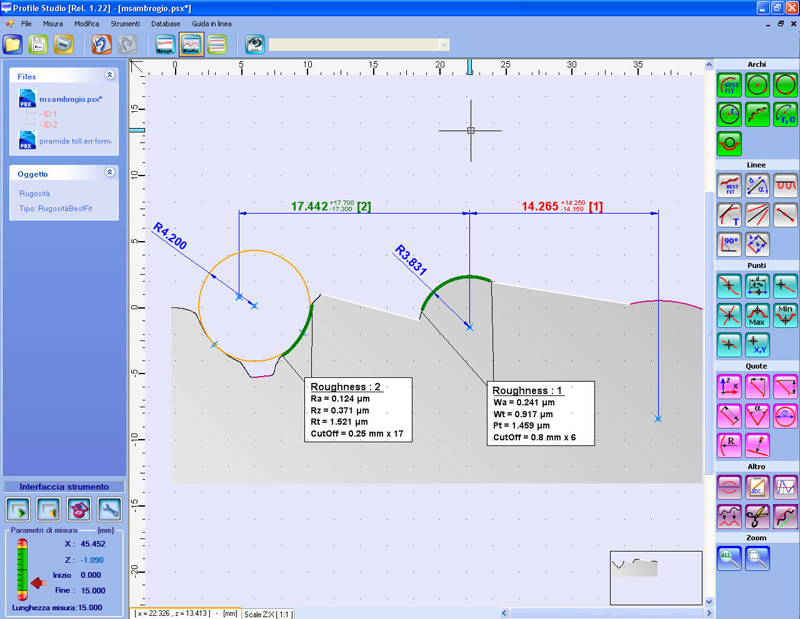

RT120 was conceived from the need to characterise roughness and micro-profiles on pieces, even complex ones, using one device, thanks to the RT120 “all-in-one” logic and Profile Studio analysis software. Profile Studio software was developed to be extremely user friendly and easy to use by the operator; all functions required for the characterization of the profile and roughness are available in the right toolbar and divided into categories, each one featuring a different colour. New dimensions and roughness analyses can be input on the same profile and displayed on the same screen, in order to allow the operator to carry out a complete analysis of the piece, with one single measurement. Thanks to the self-comparing function, it is possible to reconstruct all dimensions and dimensional tolerances of a reference profile on a new profile, thus saving a considerable amount of time for the check in series. The roughness parameters are elaborated according to the most recent standards like ISO 4287, ISO 13565-1 and -2, ISO 12085, VDA 2007 for a total of 70 parameters calculated.

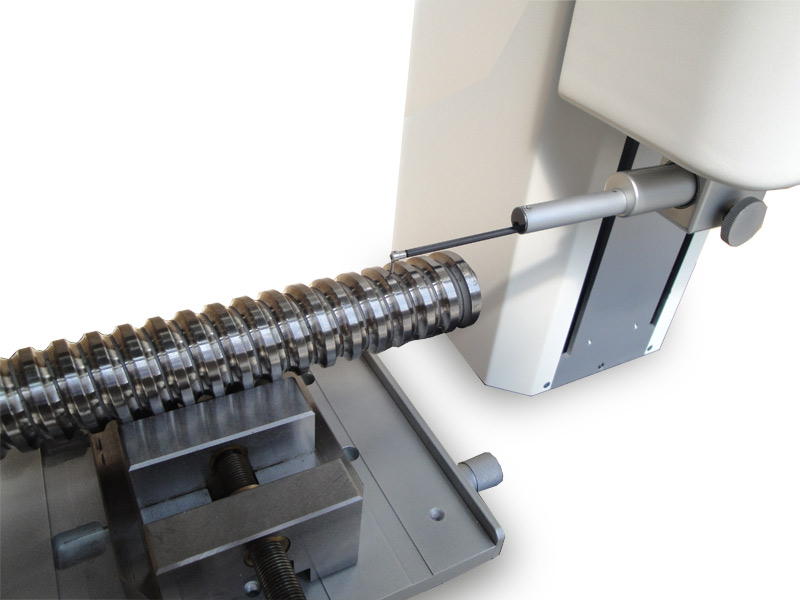

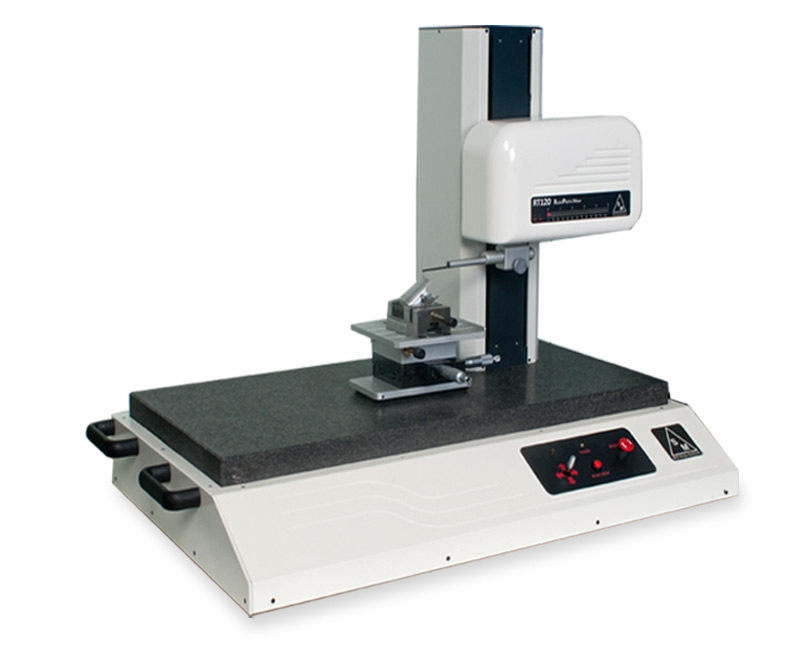

RT120 Roughness RT120 Roughness Close up RT120 Roughness Data


Parameters calculated:
ISO 4287:09 Rp, Rt, Rv, Rc, Rz, Rzjis, Ra, Ra75, RSm, RΔq, Rsk, Rku, Rδc, RPc, RmrRel Wp, Wt, Wv, Wc, Wz, Wa, Wq, WSm, WΔq, Wsk, Wku, Wδc, WPc, WmrRel Pp, Pt, Pv, Pc, Pz, Pa, Pq, PΔSm, Pq, Psk, Pku, Pδc, PPc, PmeRel
ISO 13565:96 Rk, Rpk, Rvk, Mr1, Mr2, A1, A2
DIN 4768:90 Ry5, Rmax, R3z, R3zMax, PtDIN
ISO12085:98 Pt, R, AR, Rx, Wte, W, AW, Wx, Rke, Rpke, Rvke
VDA 2007 WD, WDc, WDt, WDSm
Measurement range in X: 0.15 mm– 120 mm (0.006 in – 4.72 in)
Measurement range in Z: 3 mm(0.12 in) o 5 mm (0.39 in)
Resolution in X: 0.1 μm (0.02 μin)
Resolution in Z: 0.1 nm (0.004 μin)
Measurement speed: 0.25 – 0.5 – 1 – 2 mm/s (0.01 – 0.02 – 0.04 – 0.08 in/s)
Tip sizes: Diamond cone 60° angle 2 µm (78 µin) closing radius
Traverse length of column: Column with a positioning of 320 mm (12.6 in)
CNC cycles: CNC automatic measurement and Positioning cycles with self-comparison
Connection: USB interface towards Windows© PC
Software: Profile Studio
Languages: Italian, French, English, German, Spanish, Portuguese and Slovenian
Sizes: LxDxH1100 x 570 x 720 mm  (43.3 x 22.4 x 28.3 in)
Overall weight: 50 kg(92 lbs)
