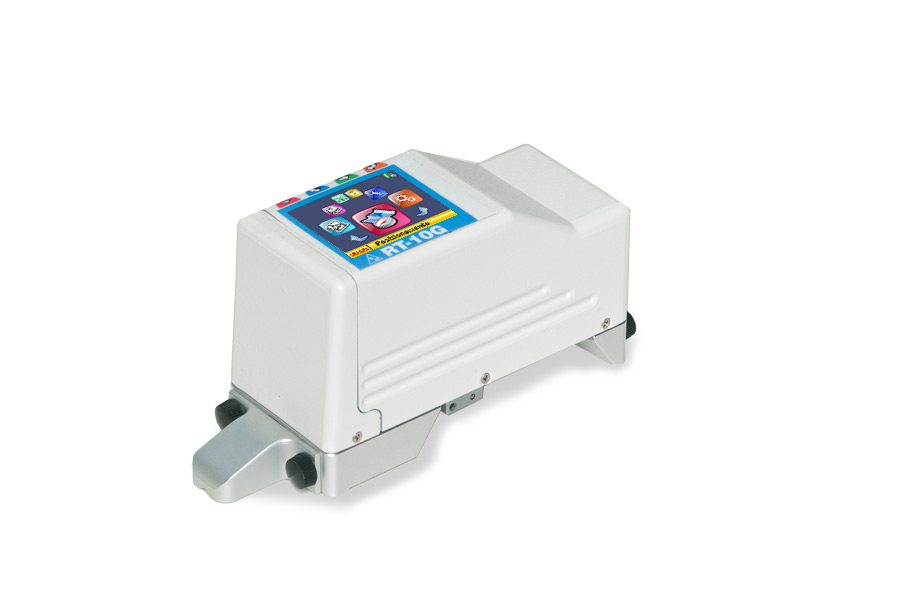

Palmtop Roughness Tester
RT10G roughness tester was born from the success obtained by RT10; easy to handle and reliable like the basic version, it also carries out advanced analyses typical of a laboratory instrument.

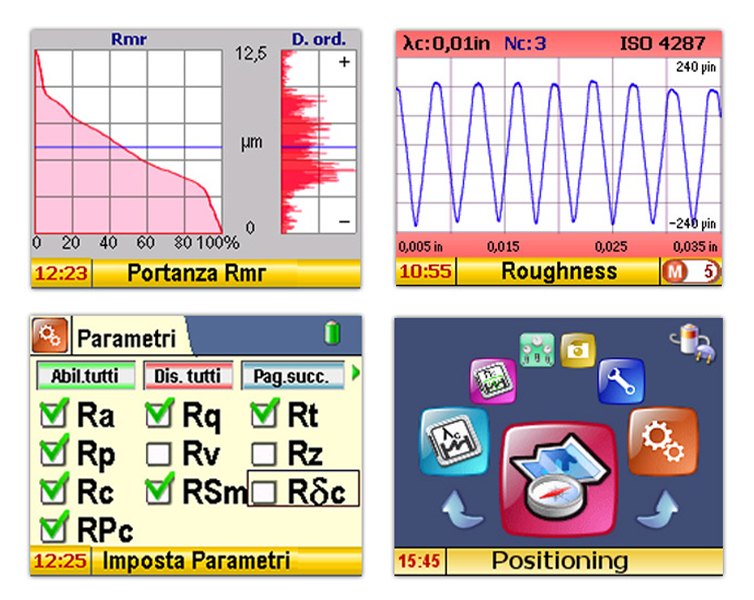

In addition to 31 roughness parameters calculated, RT10G displays the graphs of the roughness profile, primary profile, bearing capacity curves, distribution of ordinates, and allows to set tolerances on single parameters and personalize prints. RT10G uses new generation electronics with 0.001 µm resolution that ensure always reliable results and displays them in a user-friendly fashion, thanks to the internal icon menus taken from modern Smartphones.
|Cut-off Lenght:||0,25 – 0,8 – 2,5 mm|
|Cut-off number:||Selectable from 1 to 5|
|Traverse lenght:||Up to 16 mm|
|Pick-up:||Inductive, it can be rotated of 90° for lateral measurements|
|Measurement parameters:||31 parameters(Ra, Rq, Rt, Rz, Rp, Rc, Rv, Rsm, Rdc, Pa, Pq, Pt, Pp, Pc, Pv, Psm, RPc, PPc – Rk, Rpk, Pvk, Mr1, Mr2 – Pt, R, Rx, AR-R3, R3zm, Rmax)|
|Graphs displayed:||Roughness, primary, bearing capacity curve, and distribution of ordinates|
|Unit of measurement:||Millimetres and inches|
|Interface:||TFT, 2’’ colour graphic display and 4 lateral waterproof membrane buttons|
|Languages:||Italian, French, English, German, Spanish and Portuguese|
|Memory:||Up to 1000 measurements|
|Accessories:||RT10G roughness tester, 110-230V battery charger, adjusting walls, 8 mm diameter end plug for connection to stand, roughness sample, Case, User Manual.|
