Palmtop Roughness Tester

RT10 roughness tester is the basic tester of the range. This instrument is ideal to measure pieces directly on work stations or production machinery. Thanks to its simplicity of use, it is ideal for the simple numeric characterization of the roughness of an object and boasts quick testing times. Thanks to the internal memory, simple handling and integrated battery, RT10 is ideal for taking measurements in difficult conditions, like in case of bulky or complex pieces.

RT10 Plus (code 1.101). RT10 roughness tester is also available in the Plus version which features a plug-in connector that allows to interchange the pick-up, thus being able to take measurements on all types of surfaces, by simply mounting the most suitable pick-up.

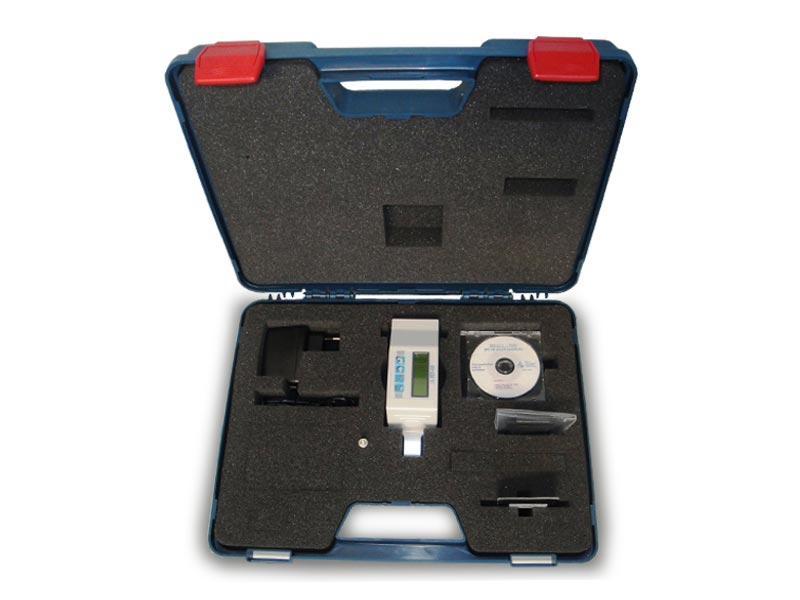

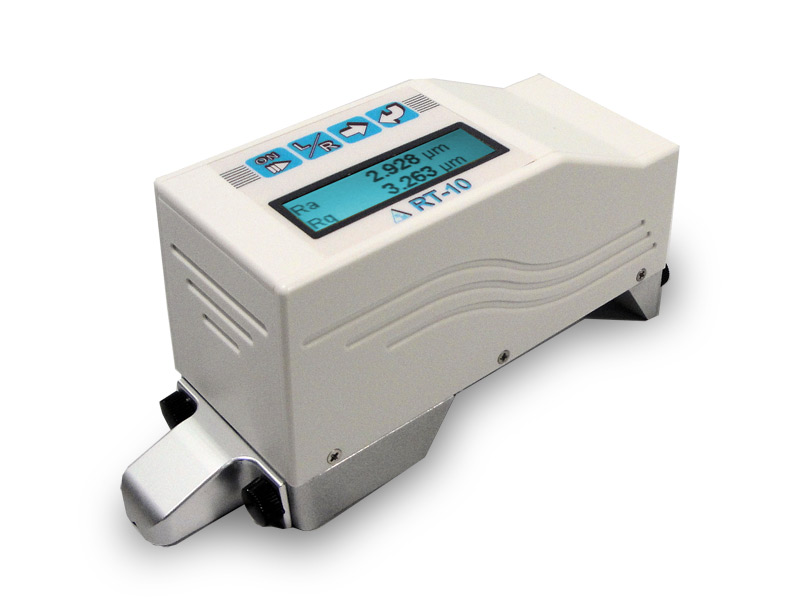

RT10 Roughness  RT10 Roughness Case


Measurement range: ±200μm
Resolution: 0,001 μm
Cut-off lenght: 0,25 – 0,8 – 2,5 mm
Cut-off number: Selectable from 1 to 5
Traverse lenght Up to 16 mm
Pick-up: Inductive, it can be rotated of 90° for lateral measurements
Measurement parameters: 11 parameters(Ra, Rq, Rt, Rz, Rc, RSm, Rmr- Pt, R, AR, Rx)
Unit of measurement: Millimetres and inches
Interface: LCD, 2’’ graphic display and 4 waterproof membrane buttons
Languages: Italian, French, English, German, Spanish, Portuguese
Memory: Up to 1000 measurements
Accessories: RT10 roughness tester, 110-230V battery charger, adjusting walls, 8 mm diameter end plug for connection to stand, roughness sample, Case, User Manual
